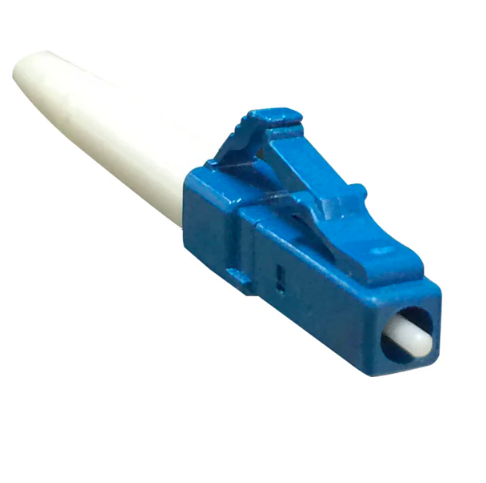

The weak point of other fusion splice-on connectors occurs when the shock absorber of the stop ring is sleeved by heat shrink after fusion splicing. Typically, if the ferrule fiber, primary fiber, and the ferrule take a load toward the primary fiber, the fiber can be bent as shown in the diagrams below – possibly causing a disconnection of the fiber. To resolve this problem, our fiber optic splice-on connectors use the ferrule to disperse this transformation and prevent fiber optic disconnect.

BENEFITS & FEATURES:

• Internal testing to verify performance and compliance with TIA-568-C.3

• Corresponding Telcordia GR-326-core

• Enhanced high quality with improved optical features (Insertion Loss & Return Loss)

• Enhanced & improved high tensile strength (exceeding 60N)

• Satisfy Vertical Burning test, materials compliant with UL94V-0

• Housing Color: SM-UPC (Blue), SM-APC (Green), MM (Beige) Applications

APPLICATIONS:

• Telecom Central Offices

• Medium and long range optical transmission circuit, LAN, CATV, FA, OA

• PC transmission system, measuring tools, etc.

• FTTx Network
