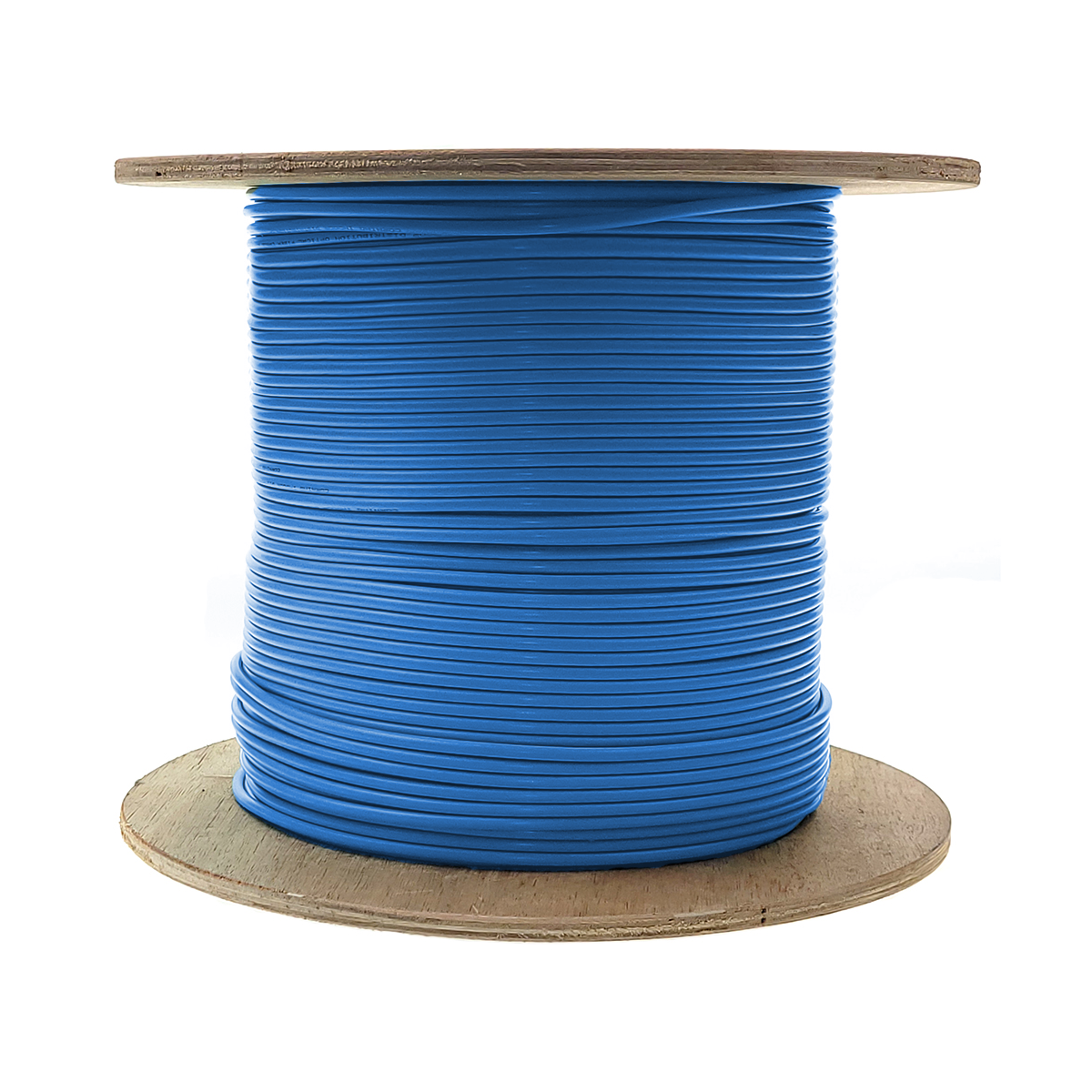

1,000ft of 12 strand single mode indoor micro-armored fiber optic cable.

Features

• Easy strip tight buffers

• Excellent tensile characteristics

• Stainless steel tube provides extra tensile strength and crush-resistance

• Small and flexible cable bending radius is suitable for many indoor

  applications

Applications

• Indoor riser level and plenum level cabling

• Fiber jumpers or pigtails

• Interconnections between network equipment

Specifications

• Cable Color: Blue

• Fiber Count: 12 cores

• Fiber Type: Single Mode

• Fiber: 250um

• Cable Outside Diameter (mm): 6.0±0.2

• Outer Jacket Material: Low-Smoke Zero-Halogen (LSZH)

• Cable Strength Member: Kevlar/Aramid Yarn

• Armor: Stainless Steel Spiral Tube

• Stainless Steel Tube Size (mm): 3.8-4.0

• Tensile Strength (N)

• Long Term: 800

• Short Term: 600

• Crush Resistance (N/100mm)

• Long Term: ≥1500

• Short Term: ≥3000

• Bending Radius (mm)

• Dynamic: ≥30

• Static: ≥60

• Cable Weight (kgs/km): ≈45

• Storage Temperature (°C): -40–+70

• Operating Temperature (°C): -40–+70

• Packing: Wooden spool (1,000ft per reel)
